Actor input schema specification

Copy for LLM

Learn how to define and validate a schema for your Actor's input with code examples. Provide an autogenerated input UI for your Actor's users.

---

The Actor input schema serves three main purposes:

• It ensures the input data supplied to the Actor adhere to specified requirements and validation rules.
• It is used by the Apify platform to generate a user-friendly interface for configuring and running your Actor.
• It simplifies invoking your Actors from external systems by generating calling code and connectors for integrations.

To define an input schema for an Actor, set input field in the .actor/actor.json file to an input schema object (described below), or path to a JSON file containing the input schema object. For backwards compatibility, if the input field is omitted, the system looks for an INPUT_SCHEMA.json file either in the .actor directory or the Actor's top-level directory—but note that this functionality is deprecated and might be removed in the future. The maximum allowed size for the input schema file is 500 kB.

When you provide an input schema, the Apify platform will validate the input data passed to the Actor on start (via the API or Apify Console) to ensure compliance before starting the Actor. If the input object doesn't conform the schema, the caller receives an error and the Actor is not started.

Validation aid

You can use our visual input schema editor to guide you through the creation of the INPUT_SCHEMA.json file.

To ensure the input schema is valid, here's a corresponding JSON schema file.

You can also use the apify validate-schema command in the Apify CLI.

Example

Imagine a simple web crawler that accepts an array of start URLs and a JavaScript function to execute on each visited page. The input schema for such a crawler could be defined as follows:

{
    "title": "Cheerio Crawler input",
    "description": "To update crawler to another site, you need to change startUrls and pageFunction options!",
    "type": "object",
    "schemaVersion": 1,
    "properties": {
        "startUrls": {
            "title": "Start URLs",
            "type": "array",
            "description": "URLs to start with",
            "prefill": [
                { "url": "http://example.com" },
                { "url": "http://example.com/some-path" }
            ],
            "editor": "requestListSources"
        },
        "pageFunction": {
            "title": "Page function",
            "type": "string",
            "description": "Function executed for each request",
            "prefill": "async () => { return $('title').text(); }",
            "editor": "javascript"
        }
    },
    "required": ["startUrls", "pageFunction"]
}

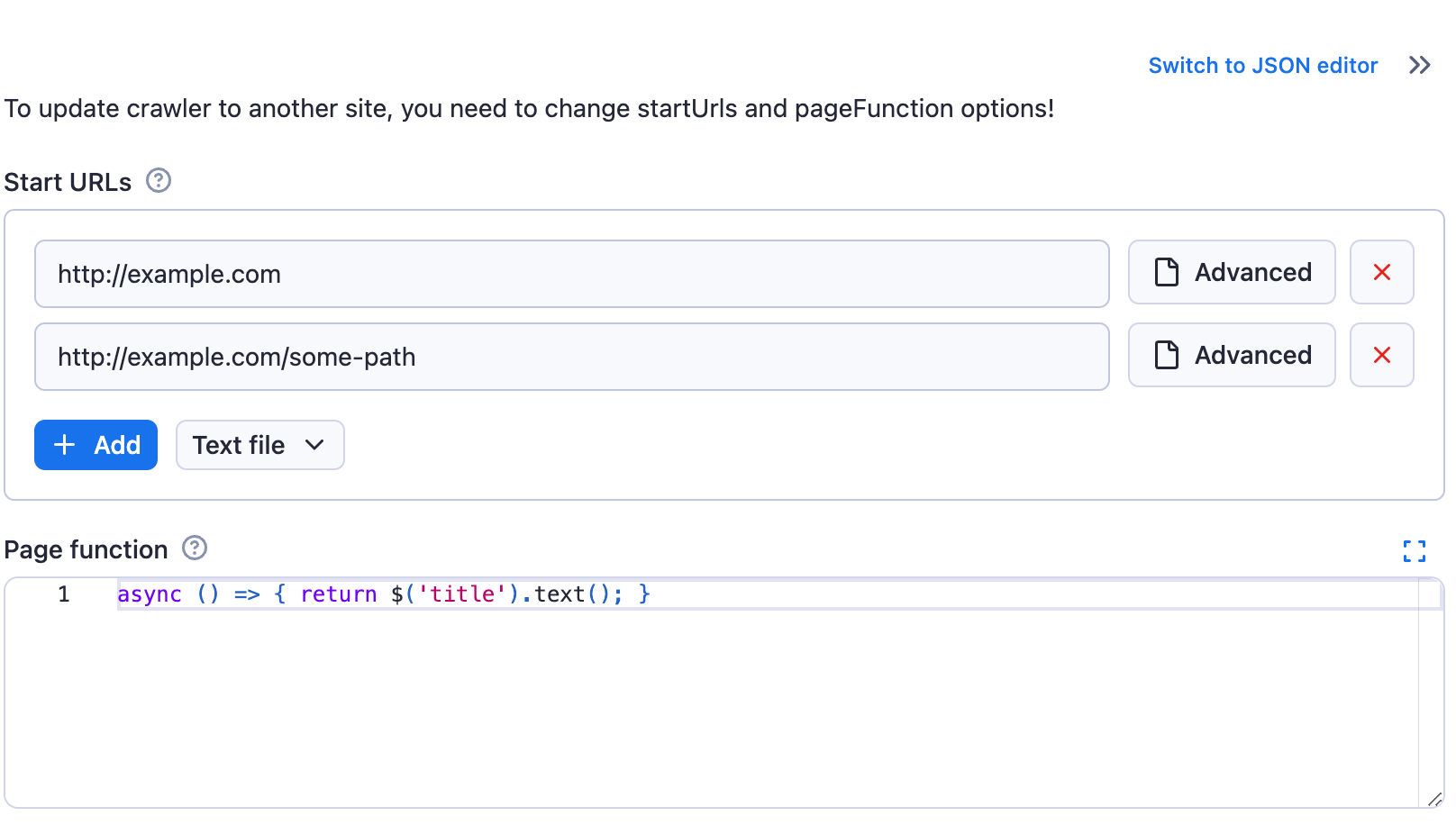

The generated input UI will be:

If you switch the input to the JSON display using the toggle, then you will see the entered input stringified to JSON, as it will be passed to the Actor:

{
    "startUrls": [
    {
        "url": "http://example.com"
    },
    {
        "url": "http://example.com/some-path"
    }
    ],
    "pageFunction": "async () => { return $('title').text(); }"
}

Structure

{
    "title": "Cheerio Crawler input",
    "type": "object",
    "schemaVersion": 1,
    "properties": { /* define input fields here */ },
    "required": []
}

Property	Type	Required	Description
title	String	Yes	Any text describing your input schema.
description	String	No	Help text for the input that will be displayed above the UI fields.
type	String	Yes	This is fixed and must be set to string object.
schemaVersion	Integer	Yes	The version of the input schema specification against which your schema is written. Currently, only version 1 is out.
properties	Object	Yes	This is an object mapping each field key to its specification.
required	String	No	An array of field keys that are required.
additionalProperties	Boolean	No	Controls if properties not listed in properties are allowed. Defaults to true. Set to false to make requests with extra properties fail.

Input schema differences

Even though the structure of the Actor input schema is similar to JSON schema, there are some differences. We cannot guarantee that JSON schema tooling will work on input schema documents. For a more precise technical understanding of the matter, feel free to browse the code of the @apify/input_schema package.

Fields

Each field of your input is described under its key in the inputSchema.properties object. The field might have integer, string, array, object, or boolean type, and its specification contains the following properties:

Property	Value	Required	Description
type	One of string array object boolean integer	Yes	Allowed type for the input value. Cannot be mixed.
title	String	Yes	Title of the field in UI.
description	String	Yes	Description of the field that will be displayed as help text in Actor input UI.
default	Must match type property.	No	Default value that will be used when no value is provided.
prefill	Must match type property.	No	Value that will be prefilled in the Actor input interface.
example	Must match type property.	No	Sample value of this field for the Actor to be displayed when Actor is published in Apify Store.
sectionCaption	String	No	If this property is set, then all fields following this field (this field included) will be separated into a collapsible section with the value set as its caption. The section ends at the last field or the next field which has the sectionCaption property set.
sectionDescription	String	No	If the sectionCaption property is set, then you can use this property to provide additional description to the section. The description will be visible right under the caption when the section is open.

Prefill vs. default vs. required

Here is a rule of thumb for whether an input field should have a prefill, default, or be required:

• Prefill - Use for fields that don't have a reasonable default. The provided value is prefilled for the user to show them an example of using the field and to make it easy to test the Actor (e.g., search keyword, start URLs). In other words, this field is only used in the user interface but does not affect the Actor functionality and API. Note that if you add a new input option to your Actor, the Prefill value won't be used by existing integrations such as Actor tasks or API calls, but the Default will be if specified. This is useful for keeping backward compatibility when introducing a new flag or feature that you prefer new users to use.
• Required - Use for fields that don't have a reasonable default and MUST be entered by the user (e.g., API token, password).
• Default - Use for fields that MUST be set for the Actor run to some value, but where you don't need the user to change the default behavior (e.g., max pages to crawl, proxy settings). If the user omits the value when starting the Actor via any means (API, CLI, scheduler, or user interface), the platform automatically passes the Actor this default value.
• No particular setting - Use for purely optional fields where it makes no sense to prefill any value (e.g., flags like debug mode or download files).

In summary, you can use each option independently or use a combination of Prefill + Required or Prefill + Default, but the combination of Default + Required doesn't make sense to use.

Additional properties

Most types also support additional properties defining, for example, the UI input editor.

String

Code input

Example of a code input:

{
    "title": "Page function",
    "type": "string",
    "description": "Function executed for each request",
    "editor": "javascript",
    "prefill": "async () => { return $('title').text(); }"
}

Rendered input:

Country selection

Example of country selection using a select input:

{
    "title": "Country",
    "type": "string",
    "description": "Select your country",
    "editor": "select",
    "default": "us",
    "enum": ["us", "de", "fr"],
    "enumTitles": ["USA", "Germany", "France"]
}

Rendered input:

datepicker editor

Example of date selection using absolute and relative datepicker editor:

{
    "absoluteDate": {
        "title": "Date",
        "type": "string",
        "description": "Select absolute date in format YYYY-MM-DD",
        "editor": "datepicker",
        "pattern": "^(\\d{4})-(0[1-9]|1[0-2])-(0[1-9]|[12]\\d|3[01])$"
    },
    "relativeDate": {
        "title": "Relative date",
        "type": "string",
        "description": "Select relative date in format: {number} {unit}",
        "editor": "datepicker",
        "dateType": "relative",
        "pattern": "^(\\d+)\\s*(day|week|month|year)s?$"
    },
    "anyDate": {
        "title": "Any date",
        "type": "string",
        "description": "Select date in format YYYY-MM-DD or {number} {unit}",
        "editor": "datepicker",
        "dateType": "absoluteOrRelative",
        "pattern": "^(\\d{4})-(0[1-9]|1[0-2])-(0[1-9]|[12]\\d|3[01])$|^(\\d+)\\s*(day|week|month|year)s?$"
    }
}

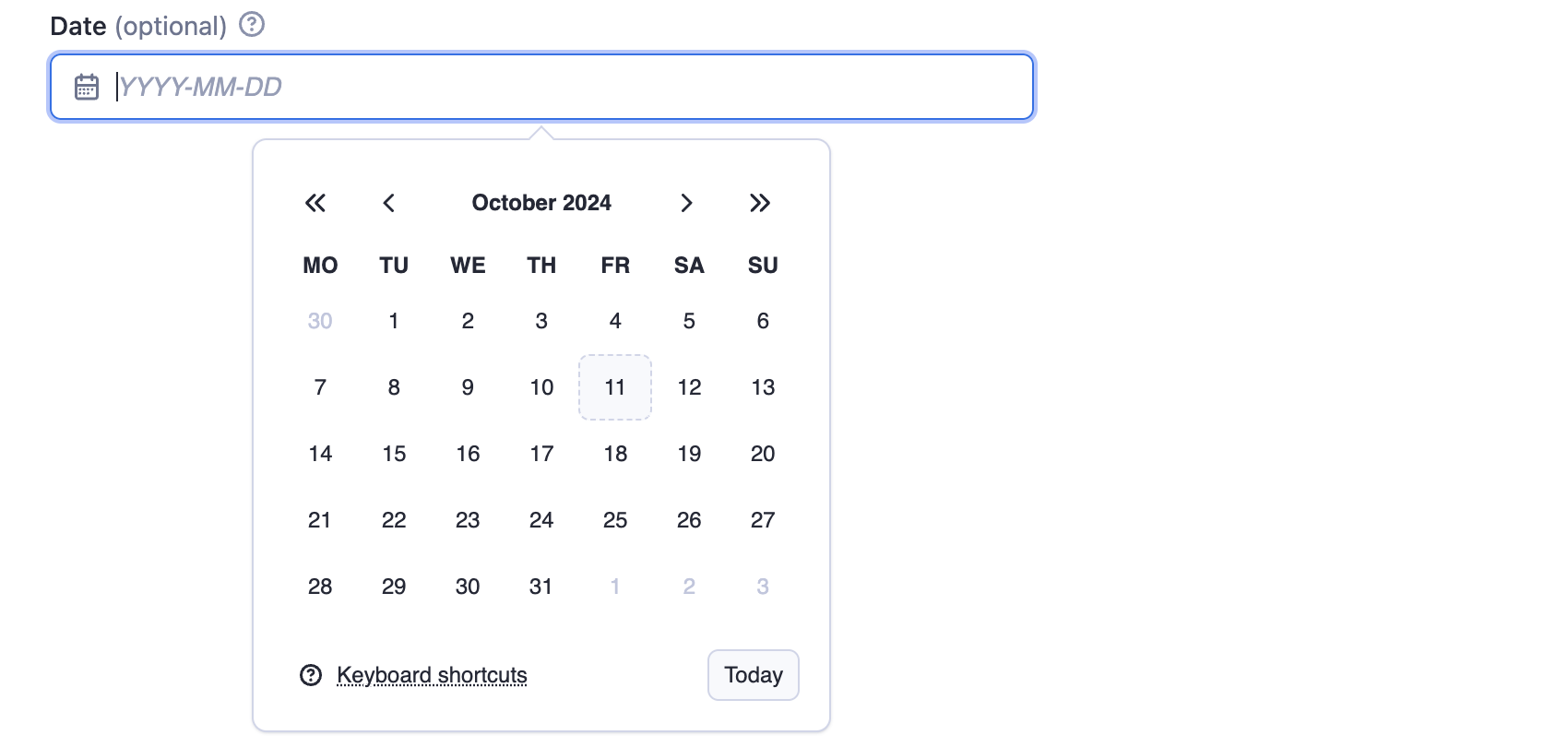

The absoluteDate property renders a date picker that allows selection of a specific date and returns string value in YYYY-MM-DD format. Validation is ensured thanks to pattern field. In this case the dateType property is omitted, as it defaults to "absolute".

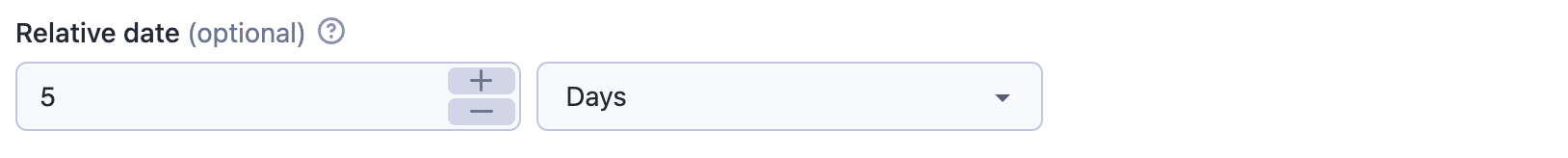

The relativeDate property renders an input field that enables the user to choose the relative date and returns the value in {number} {unit} format, for example "2 days". The dateType parameter is set to "relative" to restrict input to relative dates only.

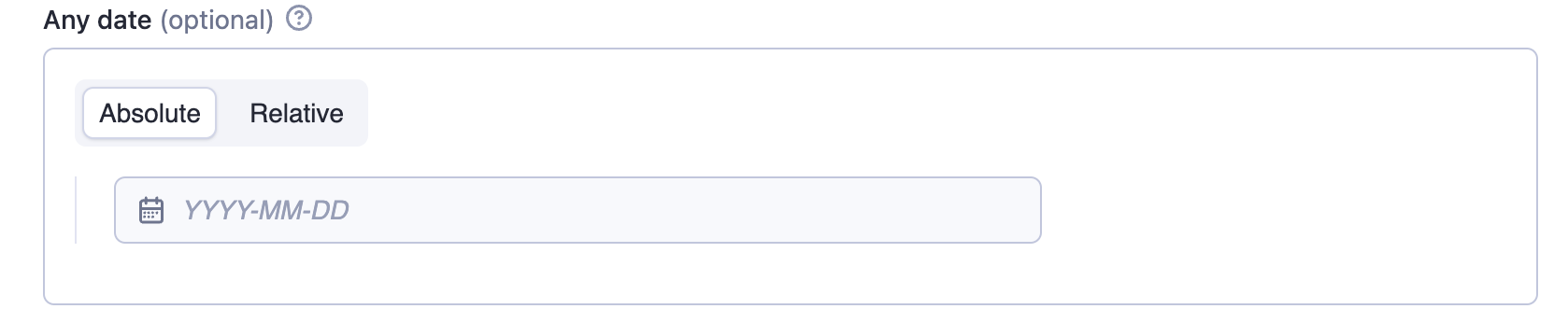

The anyDate property renders a date picker that accepts both absolute and relative dates. The Actor author is responsible for parsing and interpreting the selected date format.

fileupload editor

The fileupload editor enables users to specify a file as input. The input is passed to the Actor as a string. It is the Actor author's responsibility to interpret this string, including validating its existence and format.

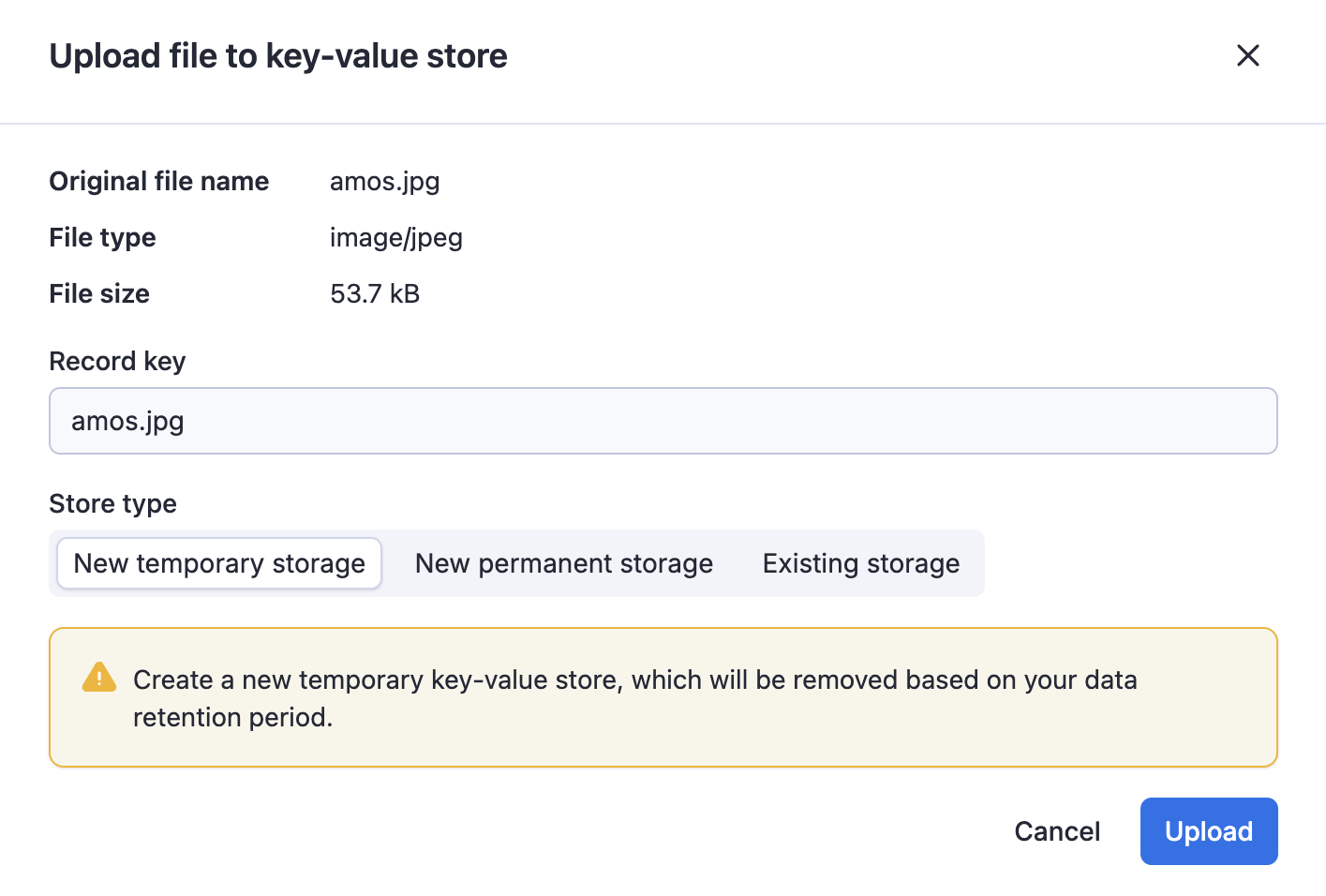

The editor makes it easier to users to upload the file to a key-value store of their choice.

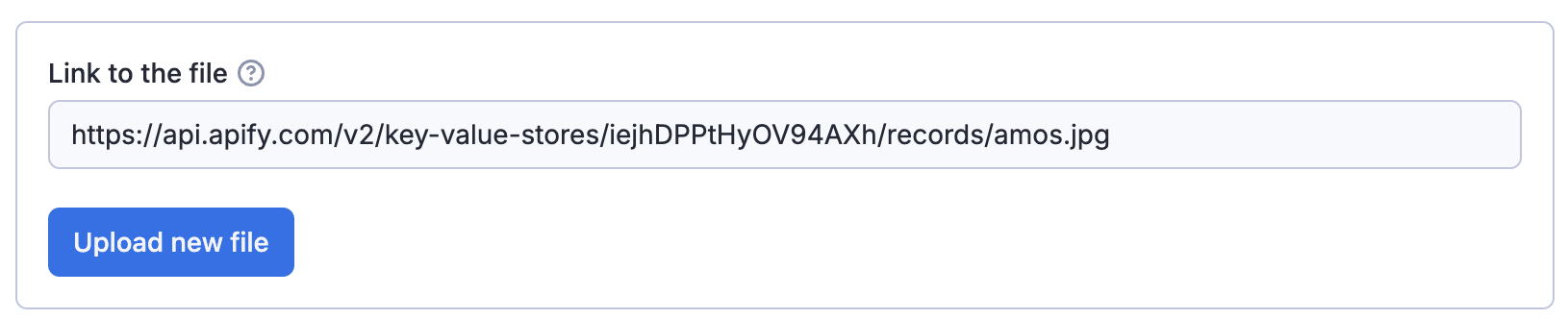

The user provides either a URL or uploads the file to a key-value store (existing or new).

Properties:

Property	Value	Required	Description
editor	One of: - textfield - textarea - javascript - python - select - datepicker - fileupload - hidden	Yes	Visual editor used for the input field.
pattern	String	No	Regular expression that will be used to validate the input. If validation fails, the Actor will not run.
minLength	Integer	No	Minimum length of the string.
maxLength	Integer	No	Maximum length of the string.
enum	[String]	Required if editor is select	Using this field, you can limit values to the given array of strings. Input will be displayed as select box.
enumTitles	[String]	No	Titles for the enum keys described.
nullable	Boolean	No	Specifies whether null is an allowed value.
isSecret	Boolean	No	Specifies whether the input field will be stored encrypted. Only available with textfield, textarea and hidden editors.
dateType	One of absolute relative absoluteOrRelative	No	This property, which is only available with datepicker editor, specifies what date format should visual editor accept (The JSON editor accepts any string without validation.). absolute value enables date input in YYYY-MM-DD format. To parse returned string regex like this can be used: ^(\d{4})-(0[1-9]|1[0-2])-(0[1-9]|[12]\d|3[01])$. relative value enables relative date input in {number} {unit} format. Supported units are: days, weeks, months, years. The input is passed to the Actor as plain text (e.g., "3 weeks"). To parse it, regex like this can be used: ^(\d+)\s*(day|week|month|year)s?$. absoluteOrRelative value enables both absolute and relative formats and user can switch between them. It's up to Actor author to parse a determine actual used format - regexes above can be used to check whether the returned string match one of them. Defaults to absolute.

Regex escape

When using escape characters \ for the regular expression in the pattern field, be sure to escape them to avoid invalid JSON issues. For example, the regular expression https:\/\/(www\.)?apify\.com\/.+ would become https:\\/\\/(www\\.)?apify\\.com\\/.+.

Advanced date and time handling

While the datepicker editor doesn't support setting time values visually, you can allow users to handle more complex datetime formats and pass them via JSON. The following regex allows users to optionally extend the date with full ISO datetime format or pass hours and minutes as a relative date:

"pattern": "^(\\d{4})-(0[1-9]|1[0-2])-(0[1-9]|[12]\\d|3[01])(T[0-2]\\d:[0-5]\\d(:[0-5]\\d)?(\\.\\d+)?Z?)?$|^(\\d+)\\s*(minute|hour|day|week|month|year)s?$"

When implementing time-based fields, make sure to explain to your users through the description that the time values should be provided in UTC. This helps prevent timezone-related issues.

Boolean

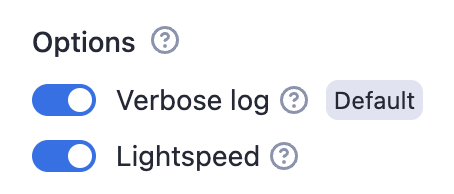

Example options with group caption:

{
    "verboseLog": {
        "title": "Verbose log",
        "type": "boolean",
        "description": "Debug messages will be included in the log.",
        "default": true,
        "groupCaption": "Options",
        "groupDescription": "Various options for this Actor"
    },
    "lightspeed": {
        "title": "Lightspeed",
        "type": "boolean",
        "description": "If checked then actors runs at the
            speed of light.",
        "prefill": true
    }
}

Rendered input:

Properties:

Property	Value	Required	Description
editor	One of checkbox hidden	No	Visual editor used for the input field.
groupCaption	String	No	If you want to group multiple checkboxes together, add this option to the first of the group.
groupDescription	String	No	Description displayed as help text displayed of group title.
nullable	Boolean	No	Specifies whether null is an allowed value.

Numeric types

There are two numeric types supported in the input schema: integer and number.

• The integer type represents whole numbers.
• The number type can represent both integers and floating-point numbers.

Example:

{
    "title": "Memory",
    "type": "integer",
    "description": "Select memory in megabytes",
    "default": 64,
    "maximum": 1024,
    "unit": "MB"
}

Rendered input:

Properties:

Property	Value	Required	Description
type	One of integer number	Yes	Defines the type of the field — either an integer or a floating-point number.
editor	One of: number hidden	No	Visual editor used for input field.
maximum	Integer or Number (based on the type)	No	Maximum allowed value.
minimum	Integer or Number (based on the type)	No	Minimum allowed value.
unit	String	No	Unit displayed next to the field in UI, for example second, MB, etc.
nullable	Boolean	No	Specifies whether null is an allowed value.

Object

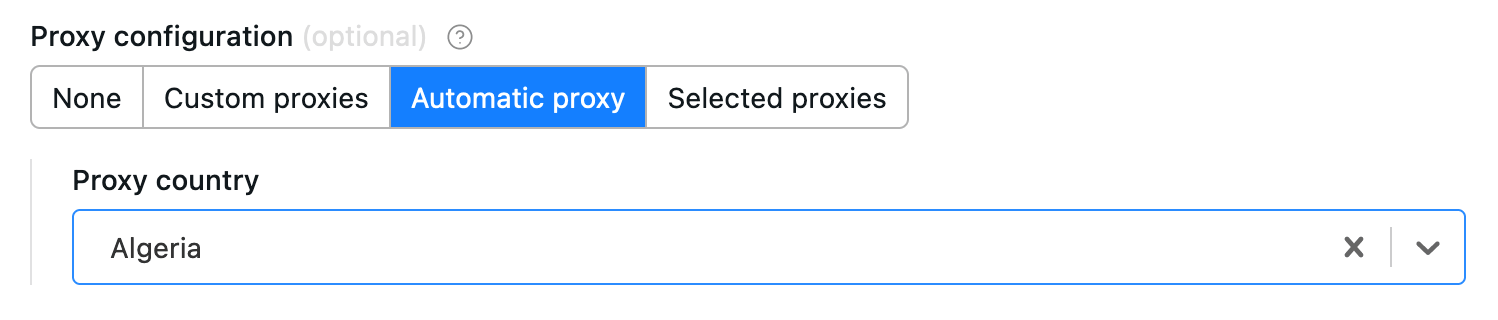

Example of proxy configuration:

{
    "title": "Proxy configuration",
    "type": "object",
    "description": "Select proxies to be used by your crawler.",
    "prefill": { "useApifyProxy": true },
    "editor": "proxy"
}

Rendered input:

The object where the proxy configuration is stored has the following structure:

{
    // Indicates whether Apify Proxy was selected.
    "useApifyProxy": Boolean,

    // Array of Apify Proxy groups. Is missing or null if
    // Apify Proxy's automatic mode was selected
    // or if proxies are not used.
    "apifyProxyGroups": String[],

    // Array of custom proxy URLs.
    // Is missing or null if custom proxies were not used.
    "proxyUrls": String[],
}

Example of a black box object:

{
    "title": "User object",
    "type": "object",
    "description": "Enter object representing user",
    "prefill": {
        "name": "John Doe",
        "email": "janedoe@gmail.com"
    },
    "editor": "json"
}

Rendered input:

Properties:

Property	Value	Required	Description
editor	One of json proxy schemaBased hidden	Yes	UI editor used for input.
patternKey	String	No	Regular expression that will be used to validate the keys of the object.
patternValue	String	No	Regular expression that will be used to validate the values of object.
maxProperties	Integer	No	Maximum number of properties the object can have.
minProperties	Integer	No	Minimum number of properties the object can have.
nullable	Boolean	No	Specifies whether null is an allowed value.
isSecret	Boolean	No	Specifies whether the input field will be stored encrypted. Only available with json and hidden editors.
properties	Object	No	Defines the sub-schema properties for the object used for validation and UI rendering (schemaBased editor). See more info below.
additionalProperties	Boolean	No	Controls if sub-properties not listed in properties are allowed. Defaults to true. Set to false to make requests with extra properties fail.
required	String array	No	An array of sub-properties keys that are required. Note: This applies only if the object field itself is present. If the object field is optional and not included in the input, its required subfields are not validated.

Object fields validation

Like root-level input schemas, you can define a schema for sub-properties of an object using the properties field.

Each sub-property within this sub-schema can define the same fields as those available at the root level of the input schema, except for the fields that apply only at the root level: sectionCaption and sectionDescription.

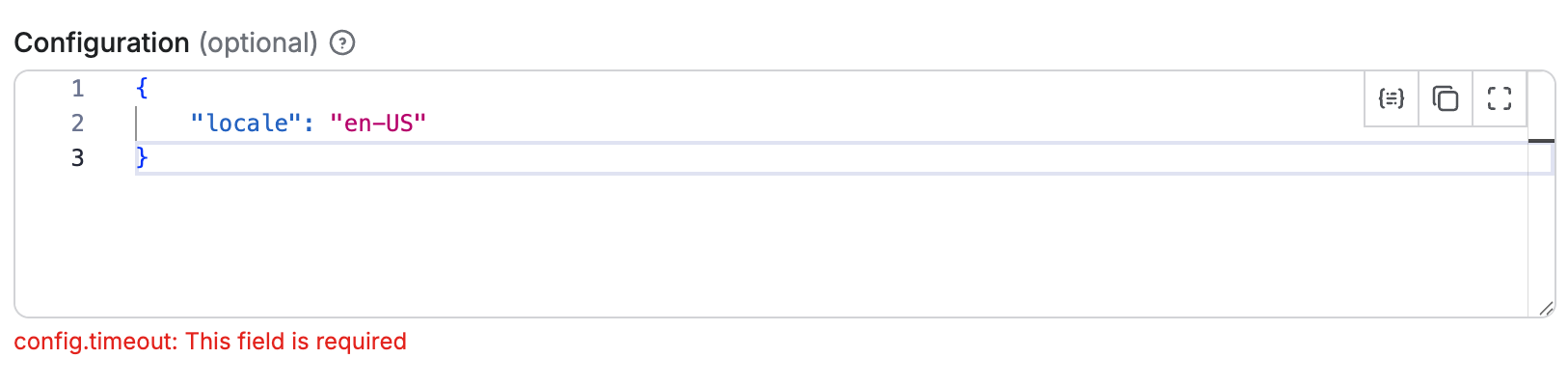

Validation is performed both in the UI and during Actor execution via the API. Sub-schema validation works independently of the editor selected for the parent object. It also respects the additionalProperties and required fields, giving you precise control over whether properties not defined in properties are permitted and which properties are mandatory.

Recursive nesting

Object sub-properties can define their own sub-schemas recursively with no nesting depth limit.

Example of an object property with sub-schema properties

{
    "title": "Configuration",
    "type": "object",
    "description": "Advanced configuration options",
    "editor": "json",
    "properties": {
        "locale": {
            "title": "Locale",
            "type": "string",
            "description": "Locale identifier.",
            "pattern": "^[a-z]{2,3}-[A-Z]{2}$"
        },
        "timeout": {
            "title": "Timeout",
            "type": "integer",
            "description": "Request timeout in seconds",
            "minimum": 1,
            "maximum": 300
        },
        "debugMode": {
            "title": "Debug Mode",
            "type": "boolean",
            "description": "Enable verbose logging during scraping"
        }
    },
    "required": ["locale", "timeout"],
    "additionalProperties": false
}

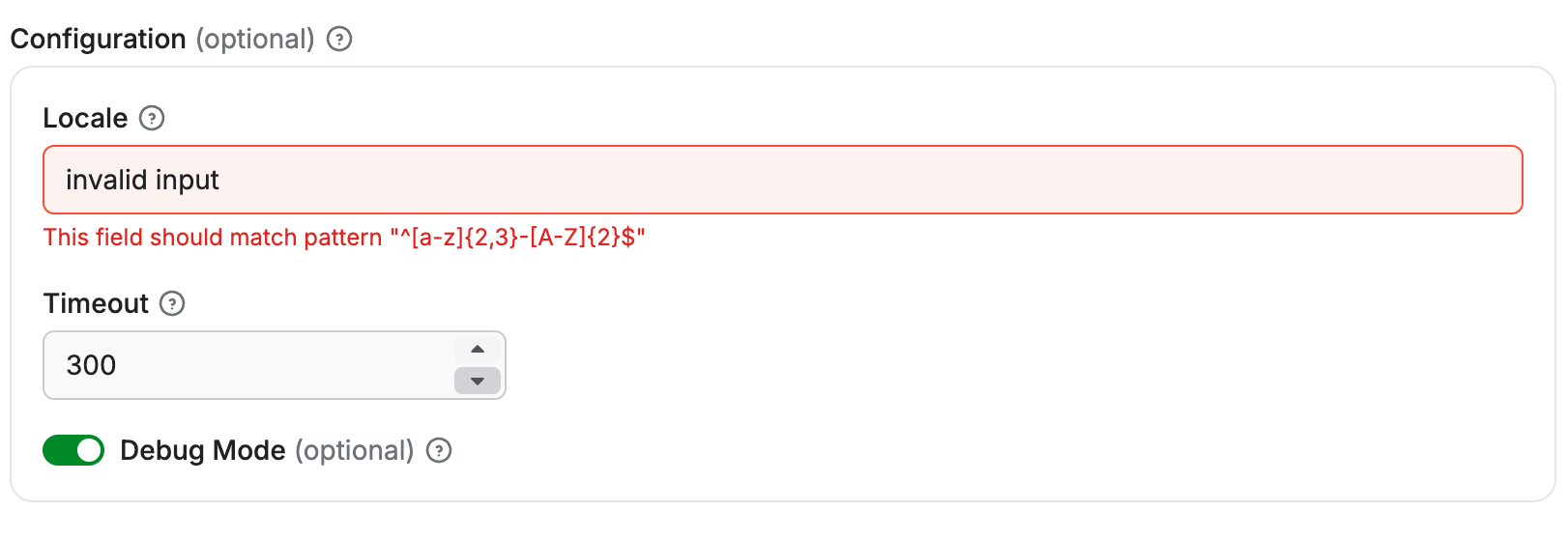

Rendered input:

In this example, the object has validation rules for its properties:

• The timeout property must be an integer between 1 and 300
• The locale property must be a string matching the pattern ^[a-z]{2,3}-[A-Z]{2}$
• The debugMode property is optional and can be either true or false
• The timeout and locale properties are required
• No additional properties beyond those defined are allowed

Handling default and prefill values for object sub-properties

When defining object with sub-properties, it's possible to set default and prefill values in two ways:

1. At the parent object level: You can provide a complete object as the default or prefill value, which will set values for all sub-properties at once.
2. At the individual sub-property level: You can specify default or prefill values for each sub-property separately within the properties definition.

When both methods are used, the values defined at the parent object level take precedence over those defined at the sub-property level. For example, in the input schema like this:

{
    "title": "Configuration",
    "type": "object",
    "description": "Advanced configuration options",
    "editor": "schemaBased",
    "default": {
        "timeout": 60
    },
    "properties": {
        "locale": {
            "title": "Locale",
            "type": "string",
            "description": "Locale identifier.",
            "pattern": "^[a-z]{2,3}-[A-Z]{2}$",
            "editor": "textfield",
            "default": "en-US"
        },
        "timeout": {
            "title": "Timeout",
            "type": "integer",
            "description": "Request timeout in seconds",
            "minimum": 1,
            "maximum": 300,
            "editor": "number",
            "default": 120
        }
    }
}

The timeout sub-property will have a default value of 60 (from the parent object), while the locale sub-property will have a default value of "en-US" (from its own definition).

schemaBased editor

Object with sub-schema defined can use the schemaBased editor, which provides a user-friendly interface for editing each property individually. It renders all properties based on their type (and editor field), providing a user-friendly interface for complex objects. This feature works for objects (and arrays of objects), enabling each property to have its own input field in the UI.

Objects with a defined sub-schema can use the schemaBased editor, which provides a user-friendly interface for editing each property individually. It renders all properties based on their type (and optionally the editor field), making it ideal for visually managing complex object structures. This editor supports both single objects and arrays of objects (see below), allowing each property to be represented with an appropriate input field in the UI.

Example of an object property with sub-schema properties using schemaBased editor

{
    "title": "Configuration",
    "type": "object",
    "description": "Advanced configuration options",
    "editor": "schemaBased",
    "properties": {
        "locale": {
            "title": "Locale",
            "type": "string",
            "description": "Locale identifier.",
            "pattern": "^[a-z]{2,3}-[A-Z]{2}$",
            "editor": "textfield"
        },
        "timeout": {
            "title": "Timeout",
            "type": "integer",
            "description": "Request timeout in seconds",
            "minimum": 1,
            "maximum": 300,
            "editor": "number"
        },
        "debugMode": {
            "title": "Debug Mode",
            "type": "boolean",
            "description": "Enable verbose logging during scraping",
            "editor": "checkbox"
        }
    },
    "required": ["locale", "timeout"],
    "additionalProperties": false
}

Rendered input:

Each sub-property is rendered with its own input field according to its type and editor configuration:

• The locale property is rendered as a text field.
• The timeout property is rendered as a numeric input with validation limits.
• The debugMode property is rendered as a checkbox toggle.

Limitations

The schemaBased editor supports only top-level sub-properties (level 1 nesting). While deeper nested properties can still define sub-schemas for validation, they cannot use the schemaBased editor for rendering. For example, if the Configuration object above included a property that was itself an object with its own sub-properties, those deeper levels would need to use a different editor, such as json.

Array

Example of request list sources configuration:

{
    "title": "Start URLs",
    "type": "array",
    "description": "URLs to start with",
    "prefill": [{ "url": "https://apify.com" }],
    "editor": "requestListSources"
}

Rendered input:

Example of an array:

{
    "title": "Colors",
    "type": "array",
    "description": "Enter colors you know",
    "prefill": ["Red", "White"],
    "editor": "json"
}

Rendered input:

Properties:

Property	Value	Required	Description
editor	One of json requestListSources pseudoUrls globs keyValue stringList fileupload select schemaBased hidden	Yes	UI editor used for input.
placeholderKey	String	No	Placeholder displayed for key field when no value is specified. Works only with keyValue editor.
placeholderValue	String	No	Placeholder displayed in value field when no value is provided. Works only with keyValue and stringList editors.
patternKey	String	No	Regular expression that will be used to validate the keys of items in the array. Works only with keyValue editor.
patternValue	String	No	Regular expression that will be used to validate the values of items in the array. Works only with keyValue and stringList editors.
maxItems	Integer	No	Maximum number of items the array can contain.
minItems	Integer	No	Minimum number of items the array can contain.
uniqueItems	Boolean	No	Specifies whether the array should contain only unique values.
nullable	Boolean	No	Specifies whether null is an allowed value.
items	object	No	Specifies format of the items of the array, useful mainly for multiselect and for schemaBased editor (see below).
isSecret	Boolean	No	Specifies whether the input field will be stored encrypted. Only available with json and hidden editors.

Usage of this field is based on the selected editor:

• requestListSources - value from this field can be used as input for the RequestList class from Crawlee.
• pseudoUrls - is intended to be used with a combination of the PseudoUrl class and the enqueueLinks() function from Crawlee.

Editor type requestListSources supports input in formats defined by the sources property of RequestListOptions.

Editor type globs maps to the Crawlee's GlobInput used by the UrlPatterObject.

Editor type fileupload enables users to specify a list of files as input. The input is passed to the Actor as an array of strings. The Actor author is responsible for interpreting the strings, including validating file existence and format. This editor simplifies the process for users to upload files to a key-value store of their choice. Editor type select allows the user to pick items from a select, providing multiple choices. Please check this example of how to define the multiselect field:

{
    "title": "Multiselect field",
    "description": "My multiselect field",
    "type": "array",
    "editor": "select",
    "items": {
        "type": "string",
        "enum": ["value1", "value2", "value3"],
        "enumTitles": ["Label of value1", "Label of value2", "Label of value3"]
    }
}

To correctly define options for multiselect, you need to define the items property and then provide values and (optionally) labels in enum and enumTitles properties.

Array items validation

Arrays in the input schema can define an items field to specify the type and validation rules for each item. Each array item is validated according to its type and inside the items field it's also possible to define additional validation rules such as pattern, minimum, maximum, etc., depending on the item type.

If the item type is an object, it can define its own properties, required, and additionalProperties fields, working in the same way as a single object field (see Object fields validation).

Validation is performed both in the UI and during Actor execution via the API. Array items can themselves be objects with sub-schemas, and objects within objects, recursively, without any limit on nesting depth.

Example of an array of objects property with sub-schema

{
    "title": "Request Headers",
    "type": "array",
    "description": "List of custom HTTP headers",
    "editor": "json",
    "items": {
        "type": "object",
        "properties": {
            "name": {
                "title": "Header Name",
                "description": "Name of the HTTP header",
                "type": "string",
                "minLength": 1
            },
            "value": {
                "title": "Header Value",
                "description": "Value of the HTTP header",
                "type": "string",
                "minLength": 1
            }
        },
        "required": ["name", "value"],
        "additionalProperties": false
    },
    "minItems": 1,
    "maxItems": 20
}

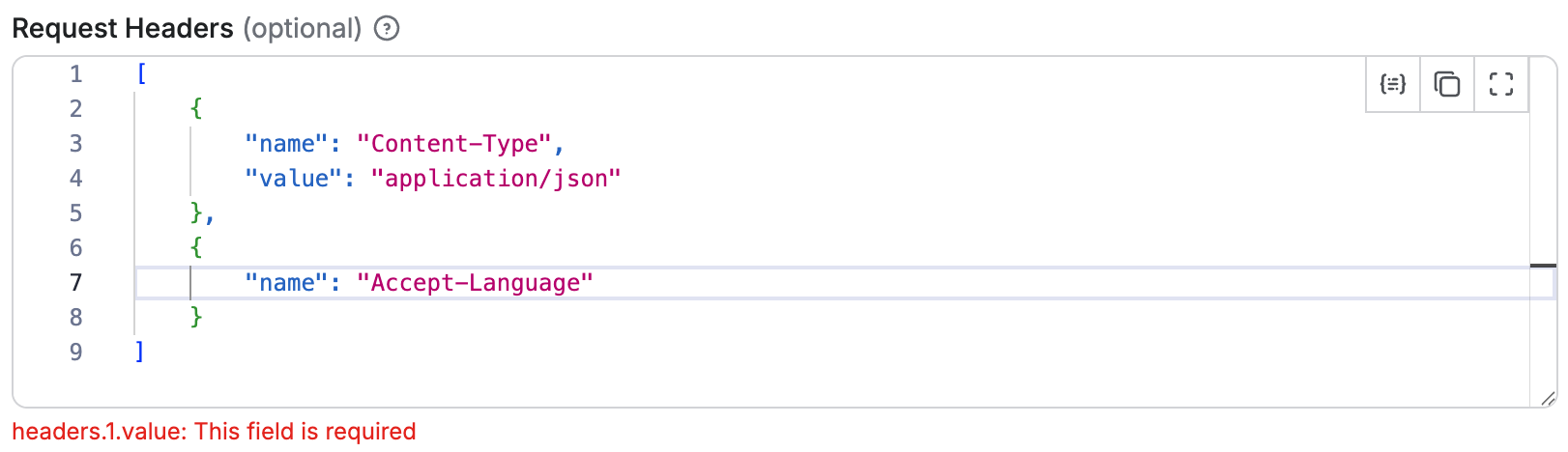

Rendered input:

In this example:

• The array must contain between 1 and 20 items.
• Each item must be an object with name and value properties.
• Both name and value are required.
• No additional properties beyond those defined are allowed.
• The validation of each object item works the same as for a single object field (see Object fields validation).

Handling default and prefill values array with object sub-properties

When defining an array of objects with sub-properties, it's possible to set default and prefill values in two ways:

1. At the parent array level: You can provide an array of complete objects as the default or prefill value, which will be used only if there is no value specified for the field.
2. At the individual sub-property level: You can specify default or prefill values for each sub-property within the properties definition of the object items. These values will be applied to each object in the array value.

For example, having an input schema like this:

{
    "title": "Requests",
    "type": "array",
    "description": "List of HTTP requests",
    "editor": "schemaBased",
    "default": [
        { "url": "https://apify.com", "port": 80 }
    ],
    "items": {
        "type": "object",
        "properties": {
            "url": {
                "title": "URL",
                "type": "string",
                "description": "Request URL",
                "editor": "textfield"
            },
            "port": {
                "title": "Port",
                "type": "integer",
                "description": "Request port",
                "editor": "number",
                "default": 8080
            }
        },
        "required": ["url", "port"],
        "additionalProperties": false
    }
}

If there is no value specified for the field, the array will default to containing one object:

[
    { "url": "https://apify.com", "port": 80 }
]

However, if the user adds a new item to the array, the port sub-property of that new object will default to 8080, as defined in the sub-property itself.

schemaBased editor

Arrays can use the schemaBased editor to provide a user-friendly interface for editing each item individually. It works for arrays of primitive types (like strings or numbers) as well as arrays of objects, rendering each item according to its type and optional editor configuration.

This makes it easy to manage complex arrays in the UI while still enforcing validation rules defined in the items field.

Example of an array of strings property with sub-schema

{
    "title": "Start URLs",
    "type": "array",
    "description": "List of URLs for the scraper to visit",
    "editor": "schemaBased",
    "items": {
        "type": "string",
        "pattern": "^https?:\\/\\/(?:[a-zA-Z0-9-]+\\.)+[a-zA-Z]{2,}(?:\\/\\S*)?$"
    },
    "minItems": 1,
    "maxItems": 50,
    "uniqueItems": true
}

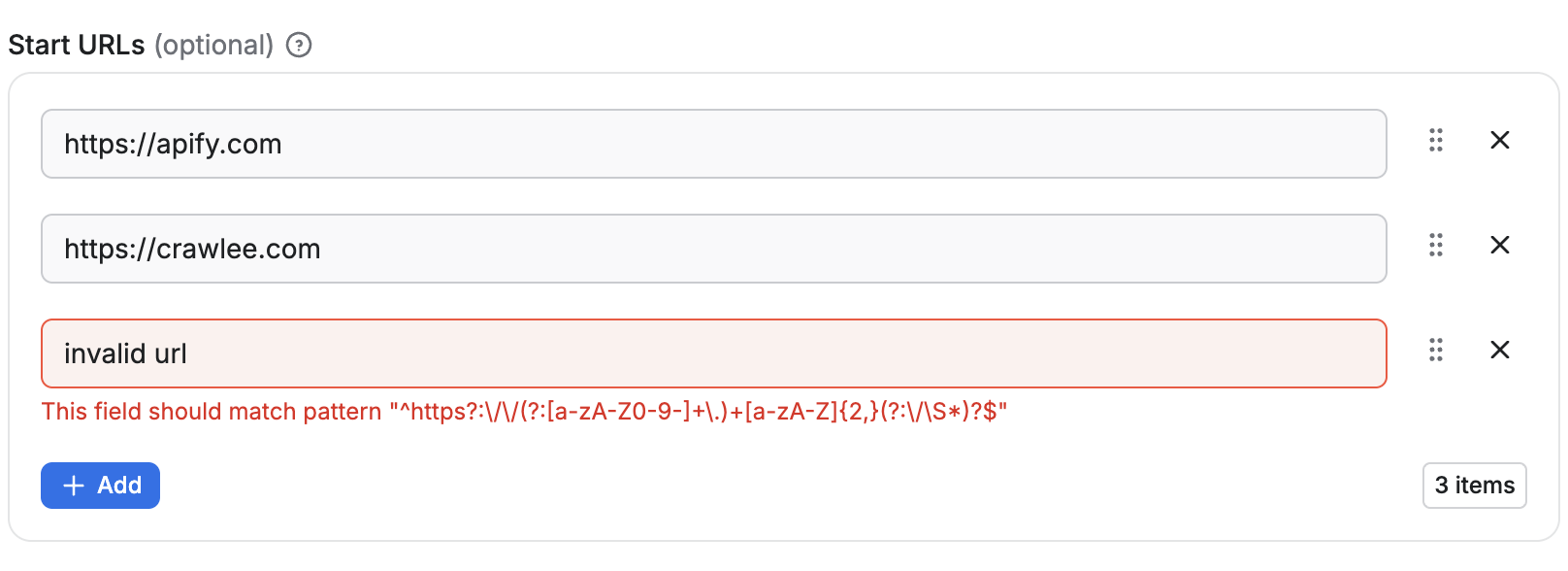

Rendered input:

• Each item is rendered as a text field.
• The array must contain between 1 and 50 items.
• Duplicate values are not allowed.

Example of an array of objects property with sub-schema

{
    "title": "Request Headers",
    "type": "array",
    "description": "List of custom HTTP headers",
    "editor": "schemaBased",
    "items": {
        "type": "object",
        "properties": {
            "name": {
                "title": "Header Name",
                "description": "Name of the HTTP header",
                "type": "string",
                "minLength": 1,
                "editor": "textfield"
            },
            "value": {
                "title": "Header Value",
                "description": "Value of the HTTP header",
                "type": "string",
                "minLength": 1,
                "editor": "textfield"
            }
        },
        "required": ["name", "value"],
        "additionalProperties": false
    },
    "minItems": 1,
    "maxItems": 20
}

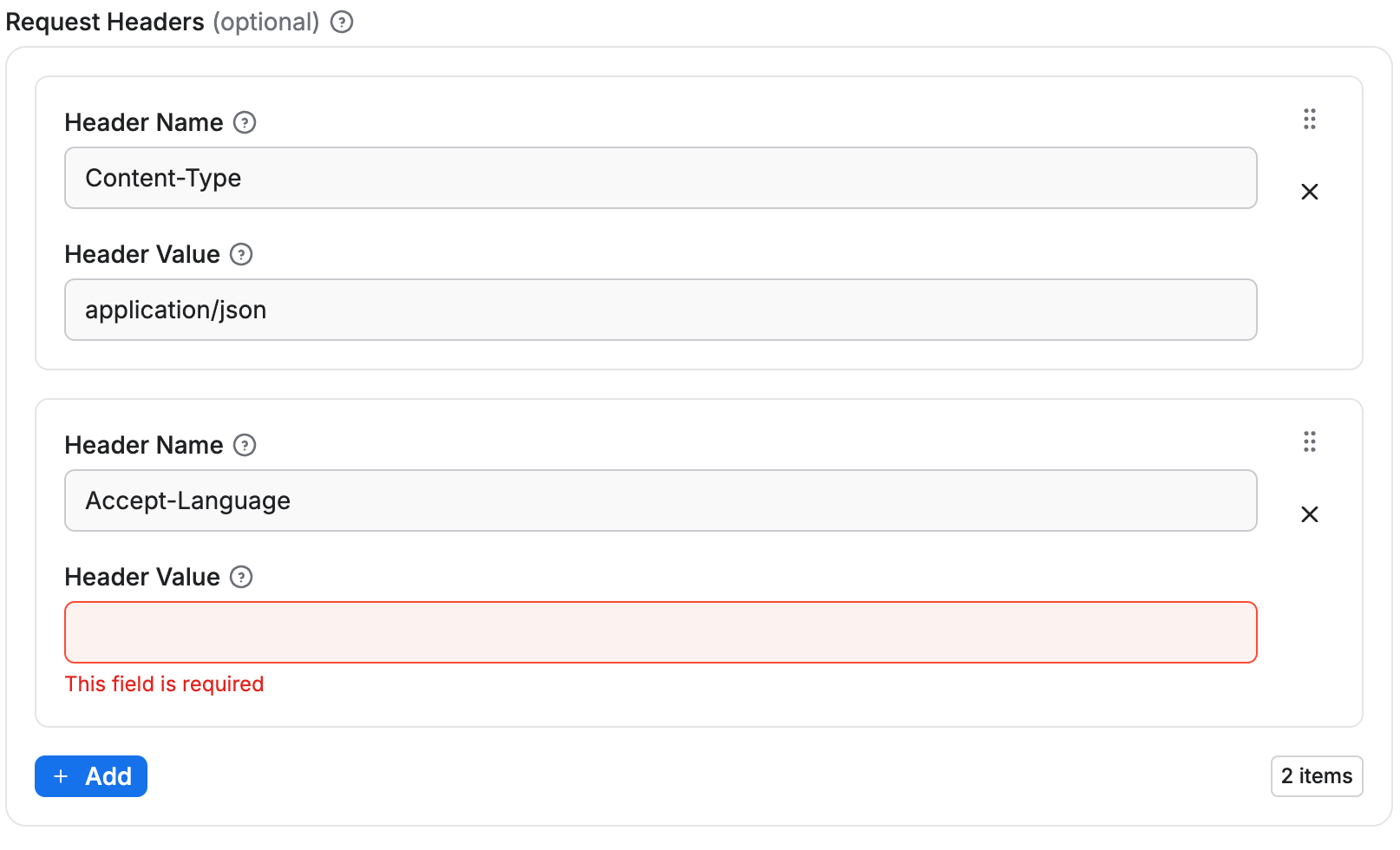

Rendered input:

• Each array item is represented as a group of input fields (name and value).
• Validation ensures all required sub-properties are filled and no extra properties are allowed.
• New items can be added up to the maxItems limit, and each item is validated individually.

Limitations

As with objects, the sub-schema feature for arrays only works for level 1 sub-properties. While the objects in the array can have properties with their own schema definitions, those properties cannot themselves use the schemaBased editor.

Resource type

Resource type identifies what kind of Apify Platform object is referred to in the input field. For example, the Key-value store resource type can be referred to using a string ID. Currently, it supports storage resources only, allowing the reference of a Dataset, Key-Value Store or Request Queue.

For Actor developers, the resource input value is a string representing the storage ID. The type of the property is either string or array. In case of array (for multiple resources) the return value is an array of IDs. In the user interface, a picker is provided for easy selection, where users can search and choose from their own storages or those they have access to.

Example of a Dataset input:

{
    "title": "Dataset",
    "type": "string",
    "description": "Select a dataset",
    "resourceType": "dataset"
}

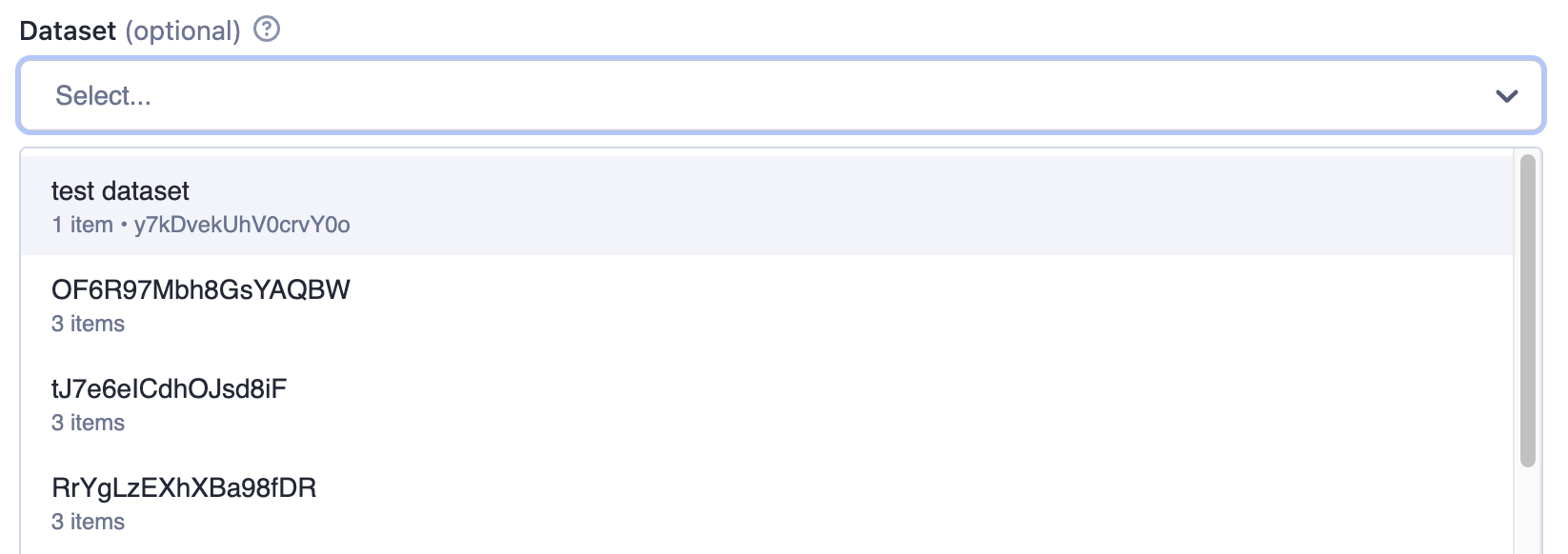

Rendered input:

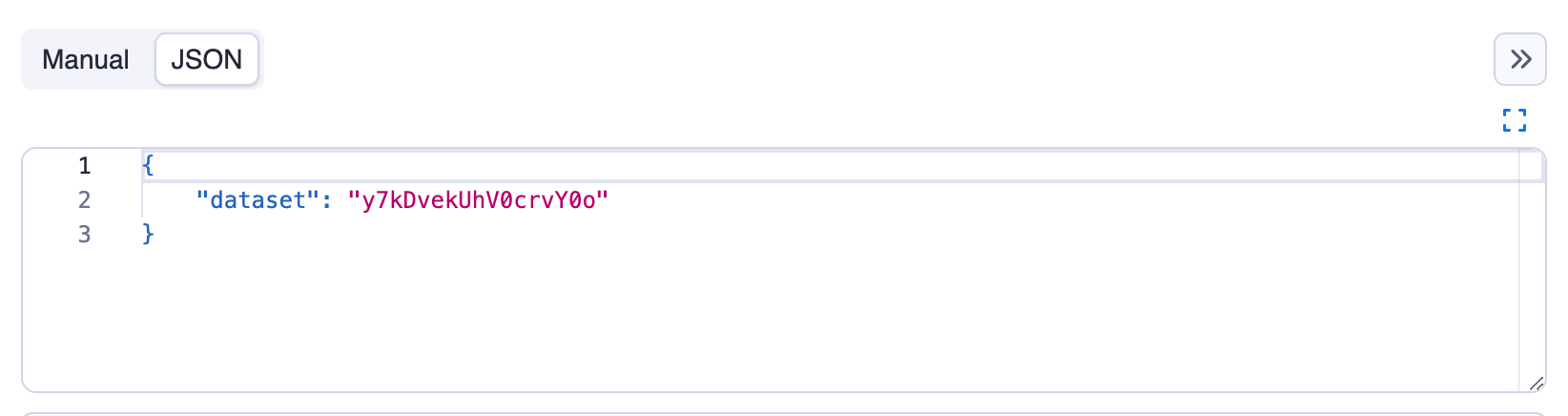

The returned value is resource reference, in this example it's the dataset ID as can be seen in the JSON tab:

Example of multiple datasets input:

{
    "title": "Datasets",
    "type": "array",
    "description": "Select multiple datasets",
    "resourceType": "dataset"
}

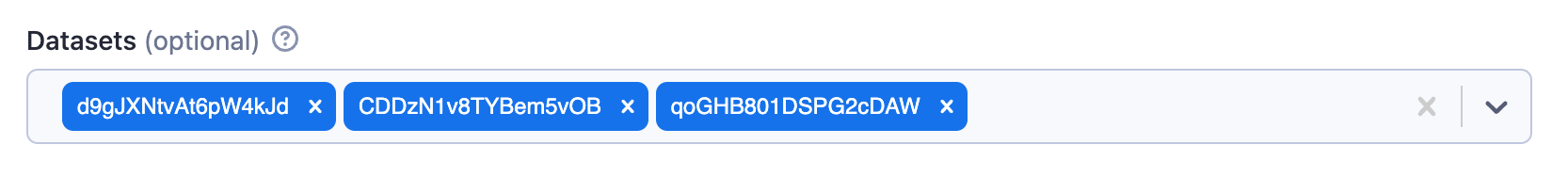

Rendered input:

Properties:

Property	Value	Required	Description
type	One of string array	Yes	Specifies the type of input - string for single value or array for multiple values
editor	One of resourcePicker hidden	No	Visual editor used for the input field. Defaults to resourcePicker.
resourceType	One of dataset keyValueStore requestQueue	Yes	Type of Apify Platform resource
minItems	Integer	No	Minimum number of items the array can contain. Only for type: array
maxItems	Integer	No	Maximum number of items the array can contain. Only for type: array
